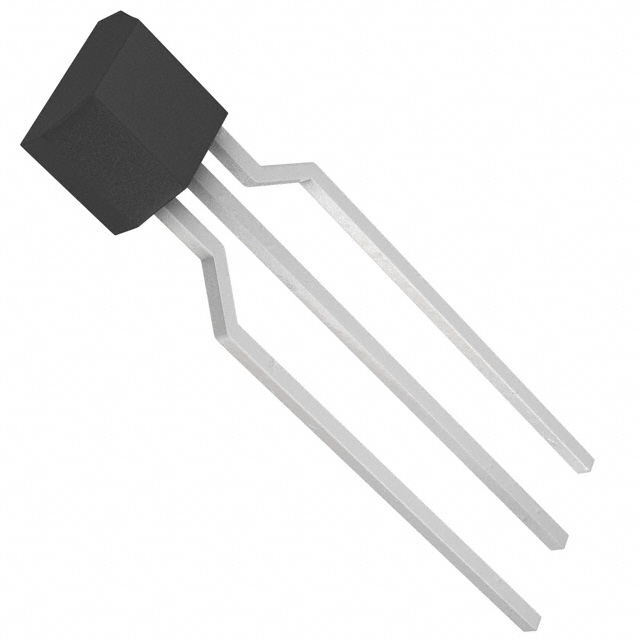

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

DTC114ESA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	SPT
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	30 @5mA, 5V
Input Power (Max)	300 mW
	Show
Product Lifecycle Status	Obsolete
Packaging	Tape & Box (TB)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
