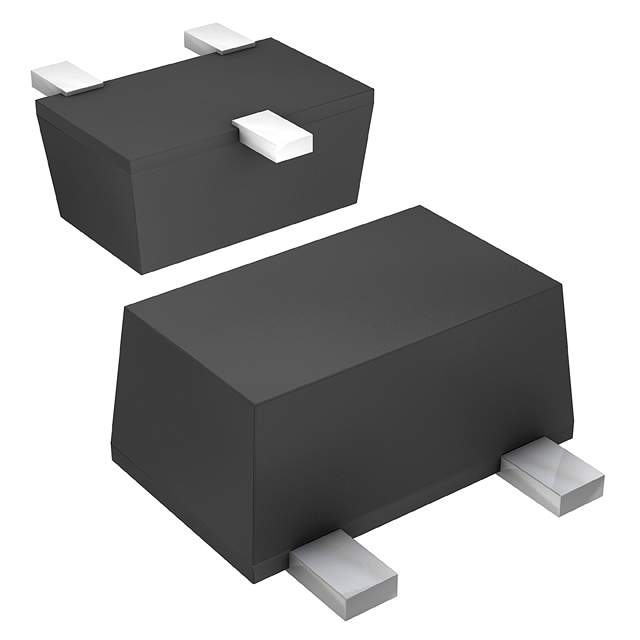

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 70mA 250MHz 200mW Surface Mount UMT3F

Show

DTC114YUBTL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-85
Power Rating	0.2 W
Polarity	NPN
Power Dissipation	0.2 W
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	68 @5mA, 5V
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	250 MHz
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
