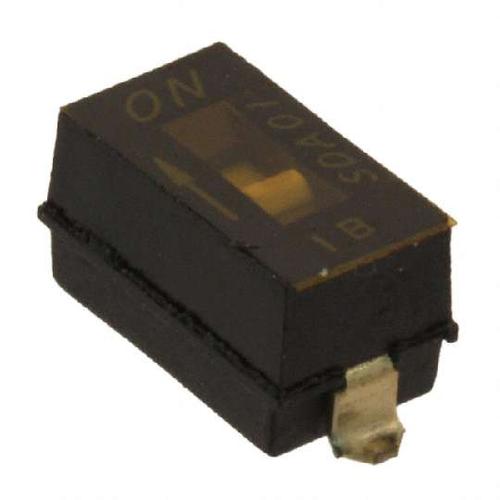

Image is for your reference only,please check specifications for details
- SDA01H0SBR - C&K Components
-
Manufacturer:C&K Components
-
ManyChip's Part#:MC6040637
-
Category:DIP Switch, SIP Switch
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:C & K COMPONENTS SDA01H0SBR DIP / SIP Switch, 1Circuits, SPST, SMD, DIP Unsealed, 24VDC
-
Stock Locations:
-
Availability:329 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.5
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SDA01H0SBR is a Low Profile Switch with surface-mount terminal and flush PA6T actuator. The SDA series switch has gold plated beryllium copper contact, gold over nickel plated brass terminals and black PPS housing.
- Low profile design saves space
- 50mR Maximum initial contact resistance
- 100MR between terminals Insulation resistance
SDA01H0SBR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | DIP |
| Voltage Rating (DC) | 24 V |
| Contacts Type | SPST |
| Number of Circuits | 1 Circuit |
| Number of Positions | 1 Position |
| Current Rating (Max) | 0.1A @5VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VDC |
| Voltage Rating (DC Max) | 24 V |
| Maximum Contact Resistance (Max) | 50 mΩ |
| Show | |
| Size-Length | 4.52 mm |
| Size-Height | 4.45 mm |
| Contact Material | Beryllium Copper |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| HTS Code | 8536509050 |
| ECCN Code | EAR99 |
