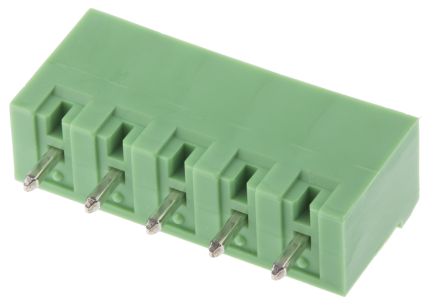

1755765 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC15323593
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
Combicon Series Side Panels Plug In Vertical To Pcb 5POS 12A 250VAC Green Plastic Housing 5.08mm Pitch 20.32mm Length
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1755765 is a 5-position 5.08mm base Strip Connector with PA (polyamide) insulator, green colour. Through hole vertical block orientation and soldering mounting. With side panels, plug-in direction vertical to the PCB.
UL94V-0 Flammability rating

Show

1755765 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	5.08 mm
Number of Contacts	5 Contact
Gender	Male
Contact Plating	Tin
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	12 A
Number of Rows	1 Row
Flammability Rating	UL 94 V-0
Number of Positions	5 Position
Mounting Angle	180 °
Current Rating (Max)	12 A
Voltage Rating (Max)	320 V
Voltage Rating	250 V
	Show
Size-Length	8.6 mm
Size-Width	27.4 mm
Size-Height	12 mm
Housing Color	Green
Color	Green
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 100℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694040
ECCN Code	EAR99
