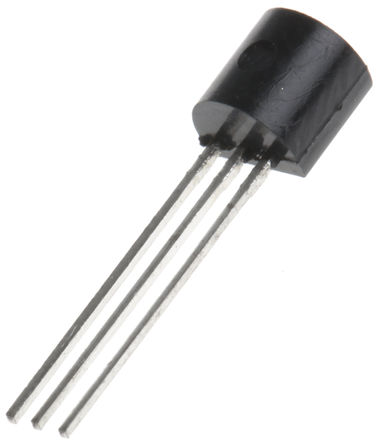

Image is for your reference only,please check specifications for details

Updated at 21/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

KSP94BU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	-400 V
Current Rating	-300 mA
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	400 V
Continuous Collector Current	0.3A
hFE Min	50 @10mA, 10V
hFE Max	300
Input Power (Max)	625 mW
DC Current Gain (hFE)	40
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	0.625 W
	Show
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	4.58 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
