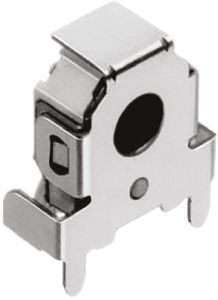

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EC05E1220202 is a 5mm Hollow Shaft Incremental Encoder operates in horizontal direction. It features 12 detents, 12 pulses and compact type employing Alps" DRUMCODE™ technology. It is suitable for use with camera, health care, mobile phone and peripherals applications.
- Surface mount
- Reflow terminal
- 4.5mm Mounting height
- 100000 Cycles operating life
- 50MR/50VDC Minimum insulation resistance
- 50VAC for 1 Minute voltage proof
- -30 to +85°C Operating temperature
EC05E1220202 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Channels | 2 Channel |
| Number of Detents | 12 Detent |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Supply Voltage (Max) | 5 VDC |
| Show | |
| Size-Height | 8.75 mm |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8543709650 |
