Description

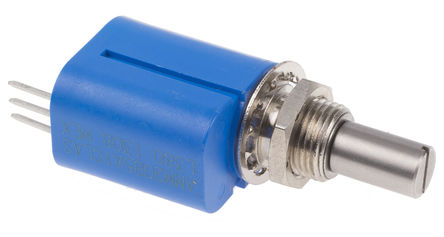

The AMM20B5A1CLASL380 is an analog magnetic Position Sensor designed to meets the specifications of heavy-duty applications requiring long cycle life and high reliability. It features slim profile package for applications with space constraints and a programmable electrical angle of 3600° (10 turn). This multiturn rotary sensor features a 1/4-inch diameter shaft with a 3/8-inch diameter bushing containing bronze sleeve bearing.
20mm Size
Bushing mount
±0.3% Independent linearity
660µs Typical low output refresh rate
Slotted shaft style
Axial PC pin terminal configuration
Non-contacting magnetic technology
Highly resistant to vibration/shock
Highly resistant to fluid/dust ingress
Programmable slope
Robust design for industrial applications
Ideal memory positioning sensor

Show

AMM20B5A1CLASL380 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Slotted Shaft, Wire Leads
Supply Voltage (DC)	4.5V ~ 5.5V
Voltage Rating (DC)	5.00 V
Output Current	15 mA
Number of Positions	3 Position
Switching Current	12 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 V
Supply Voltage	5 VDC
	Show
Size-Length	20.22 mm
Size-Width	14.29 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
