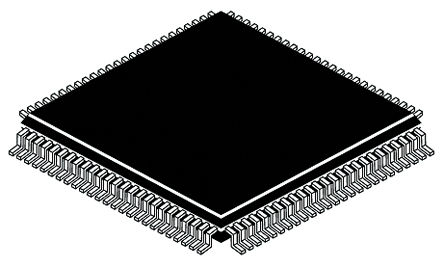

- TMS320LF2406APZA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC134400
-
Category:Microcontroller, MCU IC
-
Package:LQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:Digital Signal Processing (DSP) Fixed-Point 16Bit 40MHz 40MIPS 100Pin LQFP
-
Stock Locations:
-
Availability:22 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.27
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TMS320LF2406APZA is a 16-bit Digital Signal Processor (DSP) with flash optimized for digital motor and motion control applications. The 2406A offers an array of memory sizes and different peripherals tailored to meet the specific price/performance points required by various applications. Flash devices of up to 32K words offer a cost-effective reprogrammable solution for volume production. The 240xA devices offer a password-based "code security" feature which is useful in preventing unauthorized duplication of proprietary code stored in on-chip Flash/ROM. It offers at least one event manager module which has been optimized for digital motor control and power conversion applications. Capabilities of this module include centre and/or edge-aligned PWM generation, programmable deadband to prevent shoot-through faults and synchronized analogue-to-digital conversion. Devices with dual event managers enable multiple motor and/or converter control with a single 2406A DSP controller.
- High-performance static CMOS technology
- On-chip memory
- Up to two event-manager (EV) modules
- Two 16-bit general-purpose timers
- Eight 16-bit pulse-width modulation (PWM) channels
- Programmable deadband (dead time) prevents shoot-through faults
- Watchdog (WD) timer module
- 10-bit Analogue-to-digital converter (ADC)
- Controller area network (CAN) 2.0B module
- Serial communications interface (SCI)
- Phase-Locked-Loop (PLL) based clock generation
- Up to 40 individually programmable, multiplexed general-purpose input/output (GPIO) pins
- Up to five external interrupts (power drive protection, reset, two maskable interrupts)
- Ability to power down each peripheral independently
- Green product and no Sb/Br
- ESD sensitive device, take proper precaution while handling the device.
TMS320LF2406APZA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 40.0 MHz |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 3V ~ 3.6V |
| Number of Positions | 100 Position |
| Clock Speed | 40.0 MHz |
| RAM Memory Size | 5 KB |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 32 KB |
| Number of I/O Pins | 41 IO |
| Number of UARTs | 1 UART |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 41 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | 3A991.a.2 |
| HK STC License | NLR |
