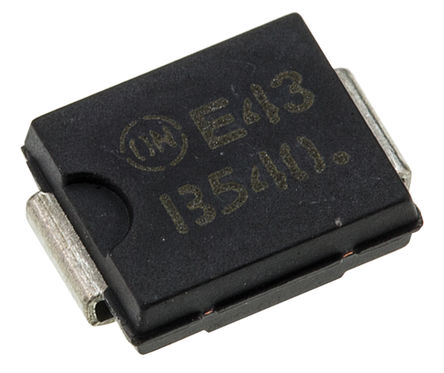

Image is for your reference only,please check specifications for details

MBRS540T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC29745
Category:
Schottky Diode
Package:
DO-214AB
Datasheet:
Datasheet 3D Model
Description:
Diode; Schottky Barrier; Vr 40V; If 5A; Pkg SMC; Vf 0.5V; Tj +150℃; Cs 190A; Ir 15mA
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRS540T3G is a surface mount Schottky power Rectifier Diode with UL94V-0 flame-rated epoxy moulded case, all external surfaces corrosion-resistant and terminal leads are readily solderable finish and notch in plastic body indicates cathode lead polarity. This Schottky rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. The Schottky rectifier is ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Highly stable oxide passivated junction
Excellent ability to withstand reverse avalanche energy transients
Guarding for stress protection
260°C Maximum for 10 seconds lead and mounting surface temperature for soldering purposes
AEC-Q101 Qualified and PPAP capable
ESD sensitive device, take proper precaution while handling the device.

Show

MBRS540T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	40.0 V
Current Rating	5.00 A
Halogen Free Status	Halogen Free
Output Current	≤5.00 A
Load Current	5 A
Number of Positions	2 Position
Forward Voltage	0.5 V
Polarity	Standard
Thermal Resistance	12℃/W (RθJL)
Forward Current	5 A
Max Forward Surge Current (Ifsm)	190 A
Maximum Forward Voltage (Max)	500 mV
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
	Show
Size-Length	6.86 mm
Size-Width	5.84 mm
Size-Height	2.13 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
HK STC License	NLR
