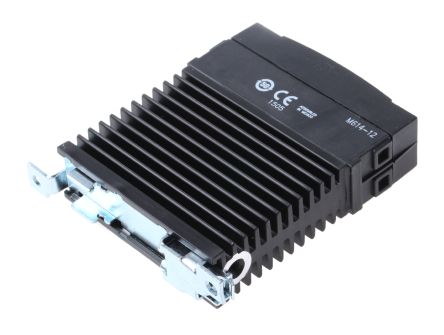

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

30 A (RMS) DIN Rail and Panel Mounting Solid State Relays
The CKRD and CKRA series relays come in the industry standard 22.5 mm-wide package. Featuring status indicating LED, DIN rail or panel mount, and "fingerproof" easy to use input and output cage type terminals, all models include integral factory-installed heatsink. Standard models feature zero-cross switching. Options include random turn-on switching (R suffix) and internal transient voltage protections (P suffix). CKRD models have a 4.5-32 VDC control. CKRA models have a 90-280 VAC control and are also available with a 24 VAC control (E suffix). UL, CSA and VDE approved.
It utilize crydom"s proprietary thermal management technology providing a compact and efficient design. Built-in DIN rail attachment, easy-to-use box clamp type terminals and integral heat sinking complete the package. This compact new design offers up to 30 A (RMS) in ambient temperatures of 25 °C.

Show

CKRD4830 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, DIN Panel
Number of Pins	4 Pin
Case/Package	SSR with Integrated Heat Sink
Supply Voltage (DC)	4.50V (min)
Current Rating	30 A
Insulation Resistance	1000 MΩ
Output Voltage	48V ~ 530V
Output Current	30000 mA
Contacts Type	SPST-NO
Load Current	30 A
Input Current	8mA ~ 12mA
Isolation Voltage	4000 v
Output Voltage (Max)	530 V
Load Current (Max)	30 Arms
Load Current (Min)	0.15 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	530 VAC
Operating Voltage (Min)	48 Vrms
Operating Voltage (Max)	530 Vrms
Input Voltage	4VDC ~ 32VDC
	Show
Size-Length	81.9 mm
Size-Width	22.5 mm
Size-Height	99 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
