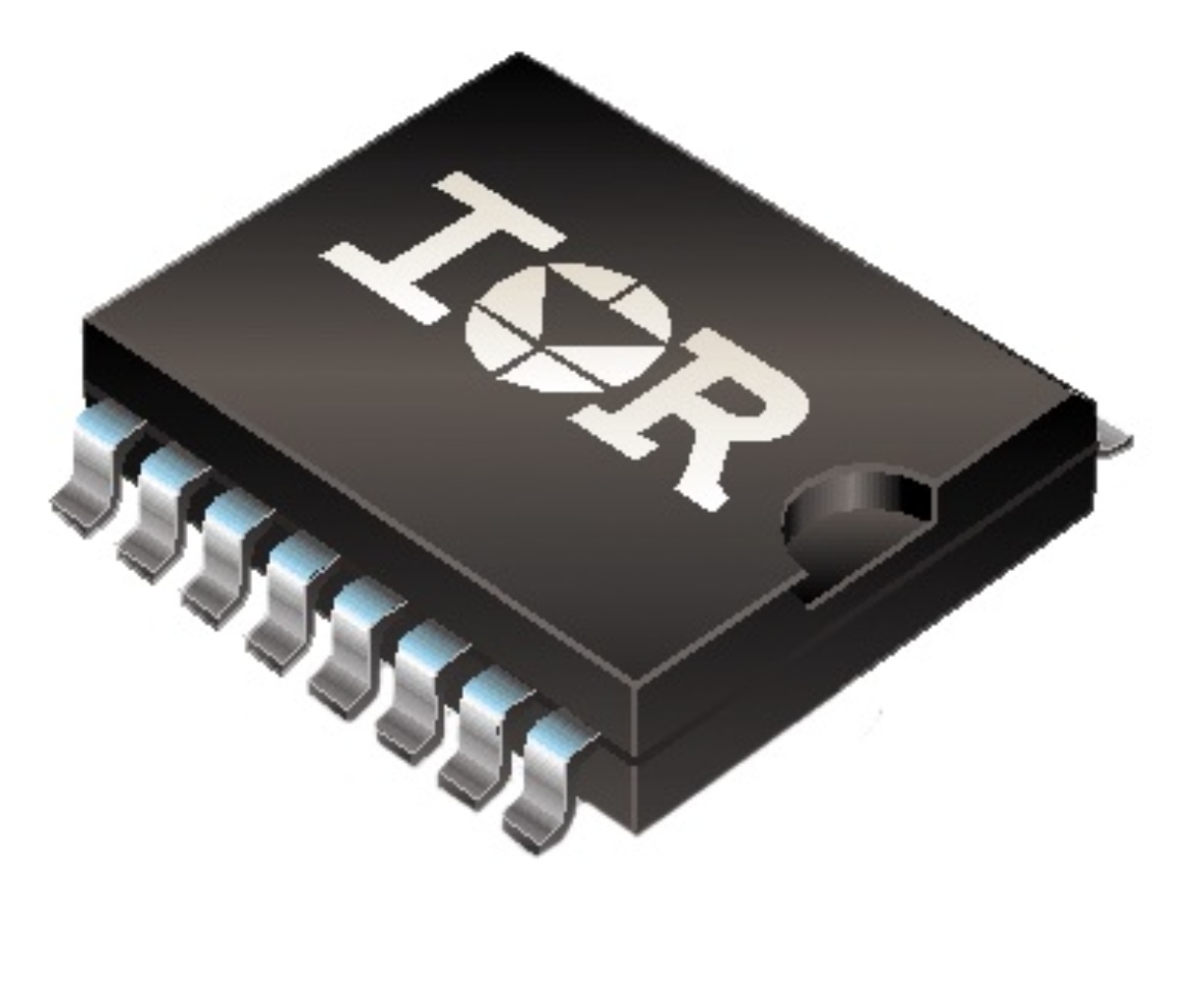

Image is for your reference only,please check specifications for details
- IR25607S - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429180470
-
Package:SOIC
-
Datasheet:Datasheet 3D Model
-
Description:600 В драйвер верхнего и нижнего плеча с типовыми токами источника 2,5 А и стока 2,5 А в корпусе 16-выводной SOICWB для IGBT и MOSFET.
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Краткий обзор характеристик:
- Плавающий канал, предназначенный для работы с бутстрепной схемой
- Интегрированный драйвер затвора полумоста на 600 В
- Устойчивый к отрицательному переходному напряжению
- Невосприимчивый к dV/dt
- Диапазон напряжения питания драйвера затвора от 10 до 20 В
- Блокировка при пониженном напряжении для обоих каналов
- Совместимость с логикой 3,3 В
- Отдельный диапазон питания логики от 3,3 В до 20 В
- Смещение между логической и силовой землей +/- 5 В
- Входы с триггером Шмитта на КМОП с подтяжкой к земле
- Логика отключения по фронту каждого цикла
- Согласованная задержка распространения для обоих каналов
- Выходы синфазны входам
IR25607S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SOIC |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
