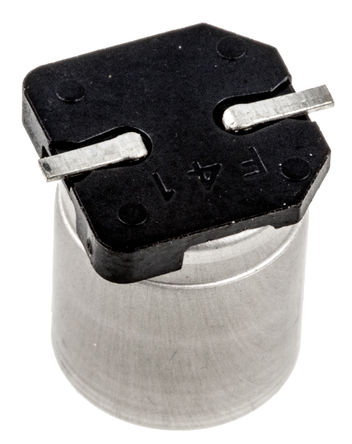

Image is for your reference only,please check specifications for details

EEEFP1H101AP - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC23093815
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
100mF 50V 670mA Φ8mm 10.2mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic FP series capacitors are type V surface mount polarized aluminium electrolytic capacitors suitable for high temperature lead free reflow. The capacitance value ranges from 10µF to 1800µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
High reliability
Automotive grade AEC-Q200 compliant
Rated voltage range from 6.3VDC to 50VDC
±20% tolerance
Endurance is 2000h at 105°C
Operating temperature range -55°C to 105°C

Show

EEEFP1H101AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Voltage Rating (DC)	50.0 V
Capacitance	100 µF
Equivalent Series Resistance (ESR)	0.18 Ω
Capacitance Tolerance	±20 %
Ripple Current	670 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±20 %
Voltage Rating	50 V
	Show
Size-Height	10.2 mm
Size-Diameter	8.00 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	500
Life (Hours)	2000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
