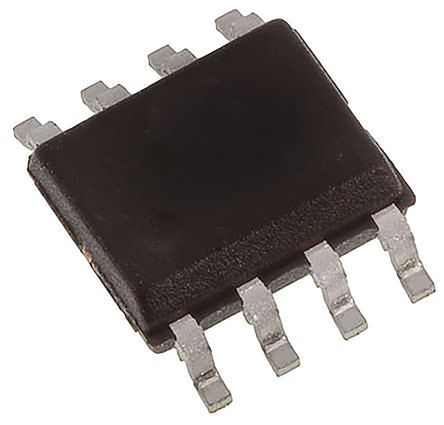

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EL7202CSZ is a 2-channel High Speed Power MOSFET Driver that improve the operation of the industry standard DS0026 clock drivers. The Elantec versions are very high speed drivers capable of delivering peak currents of 2.0 amps into highly capacitive loads. The high speed performance is achieved by means of a proprietary "Turbo-Driver" circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. These matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. This improved performance is accompanied by a 10 fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS devices. Dynamic switching losses are minimized with non-overlapped drive techniques.
Industry standard driver replacement
Improved response times
Matched rise and fall times
Reduced clock skew
Low output impedance
Low input capacitance
High noise immunity
Improved clocking rate
Low supply current
Wide operating voltage range
ESD sensitive device, take proper precaution while handling the device.

Show

EL7202CSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	7.5ns, 10ns
Number of Outputs	2 Output
Output Voltage	16.5 V
Output Current	2.00 A
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	570 mW
Rise Time	20 ns
Output Current (Max)	4 A
Fall Time	20 ns
Fall Time (Max)	20 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	570 mW
Supply Voltage	4.5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
