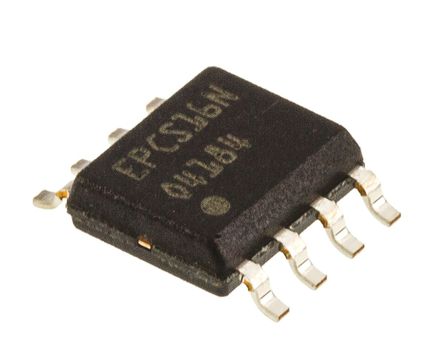

EPCS16SI8N - Altera
Manufacturer:
Altera
ManyChip's Part#:
MC3734296
Category:
EEPROM IC Chip
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
FPGA Configuration Memory, Flash, 16Mbit, 40MHz, JTAG, Serial, SOIC, 8Pins
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EPCS16SI8N is a 16Mbit serial configuration device in 8 pin SOIC package. This EPCS flash memory device can store configuration data for FPGA configuration purpose after power on. It can be used on all FPGA that support ASx1 configuration scheme. We can access unused memory locations of EPCS device to store or retrieve data through Nios processor and SOPC builder. The FPGA can program the EPCS device in-system using JTAG interface.
32 sectors and 512KB per sector
ISP support with USB-Blaster, EthernetBlaster or ByteBlaster II download cables
Recommended operating voltage of 3.3V
Supports active serial (AS) x1 configuration scheme
Fast read clock frequency of 40MHz
Low cost, low pin count and non volatile memory
Low current during configuration and near zero standby mode current
Operation voltage range from 2.7V to 3.6V
Write protection support for memory sectors using status register bits
Operating temperature range from -40°C to 85°C
