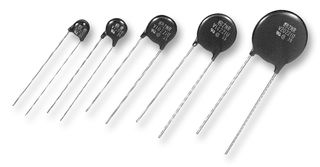

Image is for your reference only,please check specifications for details

ERZV20D112 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC117259903
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS ERZV20D112 TVS Varistor, 680V, 895V, ZNR V Series, 1.815kV, Disc 20mm, High Surge Current
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ERZV20D112 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	895 V
Voltage Rating (AC)	680 V
Capacitance	400 pF
Power Rating	1.00 W
Clamping Voltage	1.815 kV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Width	10.1 mm
Size-Height	25.5 mm
Material	Zinc Oxide
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
