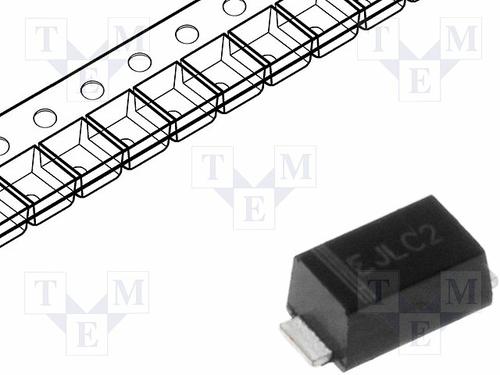

ES1JL - Taiwan Semiconductor
Manufacturer:
Taiwan Semiconductor
ManyChip's Part#:
MC10559134
Category:
Power Diode
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Rectifier Diode, 1Element, 1A, 600V V(RRM), Silicon, GREEN, PLASTIC, SUB SMA, 2Pin
Stock Locations:
Availability:
9,580 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ES1JL from Taiwan Semiconductor are surface mount super fast rectifier in Sub SMA package. This device features glass passivated junction, low profile package, low power loss and high efficiency.
Automotive grade AEC-Q101 qualified
Ideal for automated placement
Maximum repetitive reverse voltage Vrrm of 600V
Non repetitive peak forward surge current IFSM of 30A
Maximum forward Voltage VF of 1.7V at IF 1A
Maximum forward Current IF(AV) of 1A
Reverse recovery time trr of 35ns
Operating junction temperature range from -55°C to 150°C

Show

ES1JL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Capacitance	8 pF
Load Current	1 A
Forward Voltage	1.70 V
Reverse recovery time	35 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.9 mm
Size-Height	1.43 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
