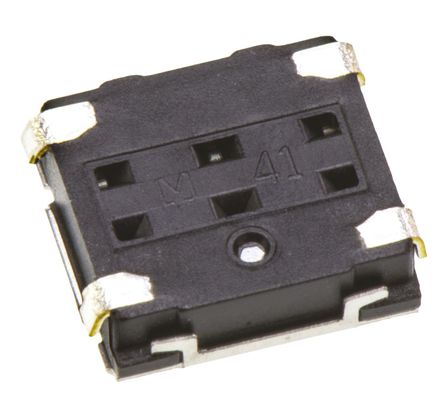

Image is for your reference only,please check specifications for details

EVQQ2P03W - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC65987196
Category:
Tactile Switch, Jog Switch
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD Embossed T/R
Stock Locations:
Availability:
1,326 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

With just a change in pressure this light touch EVQ-Q2P03W tactile switch from Panasonic can turn your circuit on or off. This device has a maximum current rating of 0.02 A @ 15VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The EVQ-Q2P03W tactile switch has a j-bend termination style. This white round button actuator is 1.3 mm long. This product is 6 mm long, 3.1 mm tall and 6.6 mm deep. The maximum DC voltage rating is 15 VDC.

Show

EVQQ2P03W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Actuator Type	Standard
Current Rating	20 mA
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	SPST-NO
Contact Current Rating	20 mA
Operating Force	1.60
Current Rating (Max)	0.02A @15VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	15 VDC
Voltage Rating (DC Max)	15 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	6 mm
Size-Width	6.6 mm
Size-Height	3.1 mm
Size-Thickness	1.80 mm
Color	White
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
