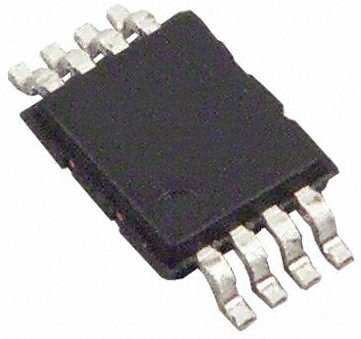

FAN4274IMU8X - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC47854303
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FAN4274IMU8X Operational Amplifier, Dual, 2 Amplifier, 3.7MHz, 3V/µs, 2.3V to 5.25V, MSOP, 8Pins
Stock Locations:
Availability:
2,976 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN4274IMU8X is a dual Voltage Feedback Operational Amplifier with rail-to-rail input and output, CMOS inputs that consume only 200µA of supply current per amplifier, while providing ±33mA of output short-circuit current. This amplifier is designed to operate 5V supplies. The common-mode voltage range extends beyond the negative and positive rails. The FAN4274 is designed on a CMOS process and provide 3.7MHz of bandwidth and 3V/µs of slew rate at a supply voltage of 5V. This amplifier operates and is reliable over a wide temperature range. The combination of extended temperature operation, low power, rail-to-rail performance and low-voltage operation. It is suitable for use in general-purpose and battery-powered applications.
Input voltage range exceeds the rails
Output swing to within 10mV of either rail
200µA/amplifier Supply current
25nV/√Hz Input voltage noise

Show

FAN4274IMU8X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	5.00 V
Input Voltage (DC)	500 mV
Output Voltage	2.65 V
Supply Current	200 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	58 dB
Bandwidth	3.7 MHz
Slew Rate	3.00 V/μs
Gain Bandwidth Product	3.7 MHz
Input Offset Voltage	8 mV
Input Bias Current	5 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	3.7 MHz
Gain Bandwidth	3.7 MHz
Minimum CMRR Range	58 dB
Supply Voltage	2.3V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
