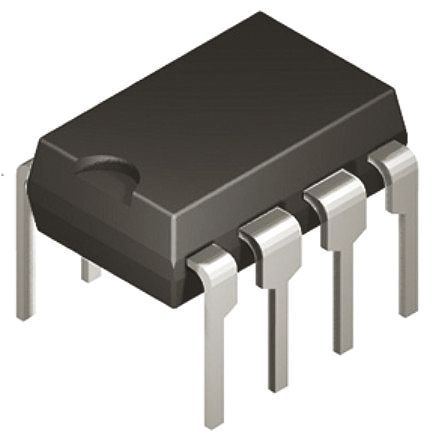

Image is for your reference only,please check specifications for details

FAN7527BN - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC76602129
Category:
Power Management IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FAN7527BN PFC Controller IC, 14V to 25V & 3mA Supply, 14V Lockout, One Quadrant Multiplier, DIP-8
Stock Locations:
Availability:
1,556 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN7527BN is a simple and high-performance active Power Factor Correction (PFC) Controller for electronic ballast. The FAN7527B is optimized for electronic ballasts and low-power, high-density power supplies that require minimum board size, reduced external components and low power dissipation, because the R/C filter is included in the current-sense block, an external R/C filter is not necessary. Special circuitry prevents no-load runaway conditions. Regardless of the supply voltage, the output drive clamping circuit limits the overshoot of the power MOSFET gate drive, which improves system reliability.
Internal start-up timer
Internal R/C filter eliminates the need for external R/C filter
Precise adjustable output overvoltage protection
Zero current detector
One quadrant multiplier
Trimmed 1.5% internal band gap reference
Under-voltage lockout with 3V of hysteresis
Totem-pole output with high-state clamp
Low start-up and operating current

Show

FAN7527BN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	14.0V (min)
Output Voltage	3.80 V
Output Current	≤500 mA
Number of Positions	8 Position
Input Current	3.00 mA
Power Dissipation	0.8 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	0.8 W
Supply Voltage	11.5V ~ 30V
Supply Voltage (Max)	25 V
Supply Voltage (Min)	14 V
	Show
Size-Length	9.2 mm
Size-Width	6.67 mm
Size-Height	3.4 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
