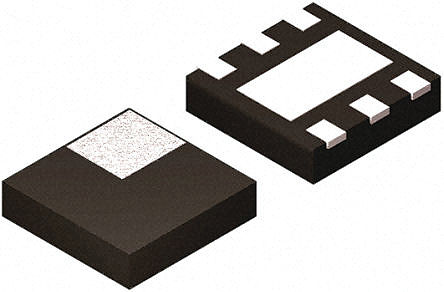

Image is for your reference only,please check specifications for details

TPS71750DSET - TI
Manufacturer:
TI
ManyChip's Part#:
MC23555063
Category:
Voltage Regulator
Package:
WFDFN-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 150mA, Fixed (5V), High PSRR, Low Quiescent Current, Low Noise LDO Regulator Pos 5V 0.15A 6Pin WSON T/R
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS71750DSET is a 5V fixed output low-dropout (LDO) low-power Linear Regulator offers very high power-supply rejection (PSRR) while maintaining very low 45µA ground current. The device uses an advanced BiCMOS process and a PMOS pass device to achieve fast start-up, very low noise, excellent transient response and excellent PSRR performance. The device is stable with a 1µF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process and temperature variations.
70dB at 1kHz, 67dB at 100kHz and 45dB at 1MHz ultra-high PSRR
Excellent load and line transient response
30µVrms Low noise (100Hz to 100kHz)
Green product and no Sb/Br

Show

TPS71750DSET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WFDFN-6
Supply Voltage (DC)	6.50 V
Power Rating	485 mW
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Supply Current	100 µA
Number of Positions	6 Position
Power Dissipation	485 mW
Quiescent Current	45 µA
Output Capacitor Type	Ceramic
voltage rating	170 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Min)	5 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	485 mW
Accuracy	3 %
Input Voltage	≤6.5 V
	Show
Size-Length	1.55 mm
Size-Width	1.55 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
