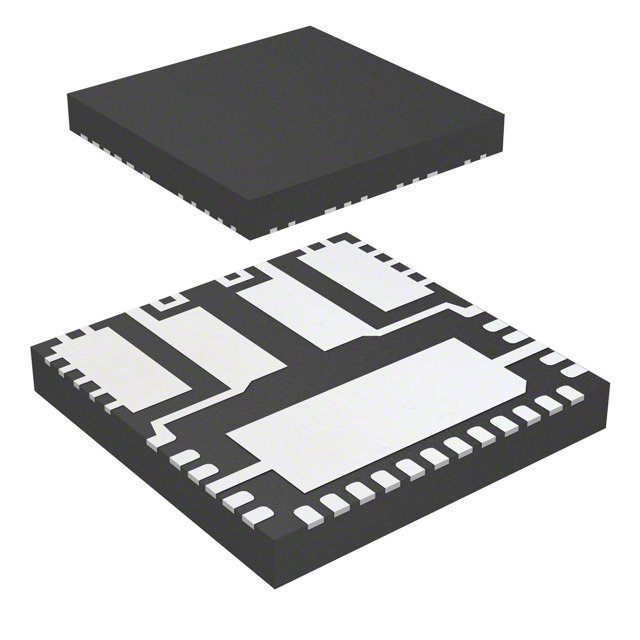

Image is for your reference only,please check specifications for details
- IR4312MTRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC14057244
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:IR4312 Series 2Channel 40V 40W 50dB Class D Audio Amplifier - PQFN-44L
-
Stock Locations:
-
Availability:206 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.13
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- 2 channel integrated analog input Class D audio amplifier in a small 7 x 7 mm PQFN44 package
- No mechanical heatsink required
- High peak music power output
- Split or single power supply
- Differential or single-ended input
- Over-current, over-temperature and under voltage protections with self-reset feature
- Start/stop click noise reduction
- Clip and Fault reporting outputs
- High noise immunity
- RoHS compliant
- Target Applications:
- Audio
IR4312MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | QFN-44 |
| Power Rating | 35 W |
| Number of Channels | 2 Channel |
| Number of Positions | 44 Position |
| Power Dissipation | 8 W |
| Gain Bandwidth Product | 9 MHz |
| Output Power | 35 W |
| Gain | 50 dB |
| Input Offset Voltage | 18 mV |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 8000 mW |
| Supply Voltage | 10V ~ 15V |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
