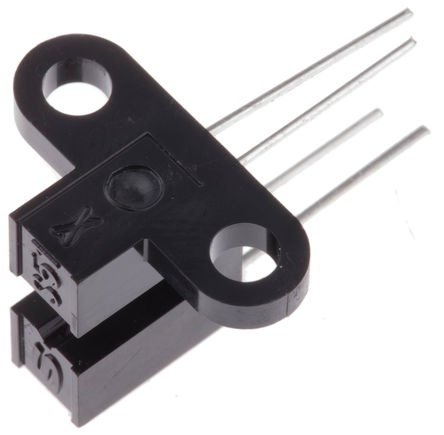

Image is for your reference only,please check specifications for details

GP1S51VJ000F - Sharp
Manufacturer:
Sharp
ManyChip's Part#:
MC4133204
Category:
Optical Sensor
Package:
PCB Mount
Datasheet:
Datasheet 3D Model
Description:
Transistor Output Slotted Switch, 1Channel, 3mm Slot Width, 12.20 X 10MM, 18MM HEIGHT, ROHS COMPLIANT PACKAGE-4
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

GP1S51VJ000F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PCB Mount
Output Current	≤20.0 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Power Dissipation	75 mW
Rise Time	15 µs
Breakdown Voltage (Collector to Emitter)	35 V
Forward Current	50 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	50 mA
Fall Time	20 µs
Fall Time (Max)	20000 ns
Fall Time (Max)	15000 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	75 mW
	Show
Size-Length	18 mm
Size-Width	12.2 mm
Size-Height	10 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
