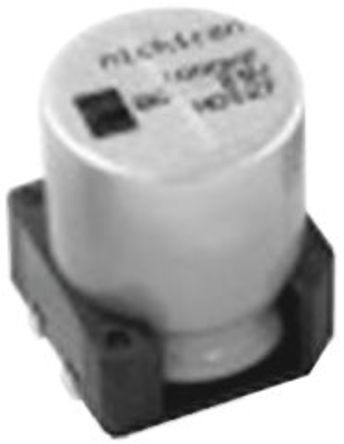

Image is for your reference only,please check specifications for details

UBC1V101MNS1GS - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC54508254
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Lytic 100uF 35V 20% (10 X 10mm) SMD 120mA 1000H 150℃ Automotive T/R
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Nichicon has you covered with their pure aluminum electrolytic UBC1V101MNS1GS electrolytic capacitor, designed to filter out lower frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 150 °C. This product is 10 mm tall with a diameter of 10 mm. Its leakage current is 105@1Min μA. Its capacitance value is 100uF. It has a tolerance of 20%.

Show

UBC1V101MNS1GS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	35.0 V
Capacitance	100 µF
Capacitance Tolerance	±20 %
Ripple Current	120 mA
Ripple Current (Low Frequency)	80.4mA @120Hz
Ripple Current (High Frequency)	120mA @100kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	35 V
	Show
Size-Height	10 mm
Size-Diameter	10.0 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Life (Hours)	1000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
