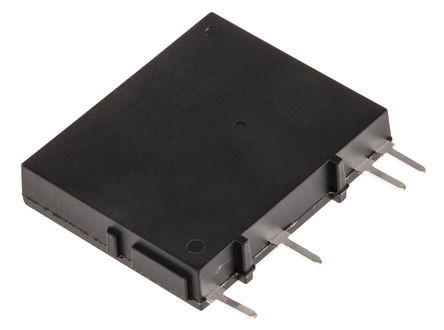

Image is for your reference only,please check specifications for details
- AQG22124 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC8665096
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:PANASONIC ELECTRIC WORKS AQG22124 MOSFET Relay, SPST-NC, 2A, Through Hole, 264V
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **AQG Series**
- These PCB mount solid state relays offer space saving and a high dielectric strength.
AQG22124 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Current Rating | 2 A |
| Output Voltage | 75V ~ 264V |
| Output Current | 2000 mA |
| Contacts Type | SPST-NC |
| Load Current | 2 A |
| Isolation Voltage | 3000 v |
| Input Voltage (Max) | 28.8 V |
| Input Voltage (Min) | 19.2 V |
| Output Voltage (Max) | 264 V |
| Output Current (Max) | 2 A |
| Load Current (Max) | 2 A |
| Load Current (Min) | 20 mA |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Input Voltage | 19.2VDC ~ 28.8VDC |
| Show | |
| Size-Length | 24.5 mm |
| Size-Width | 4.5 mm |
| Size-Height | 20.5 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
