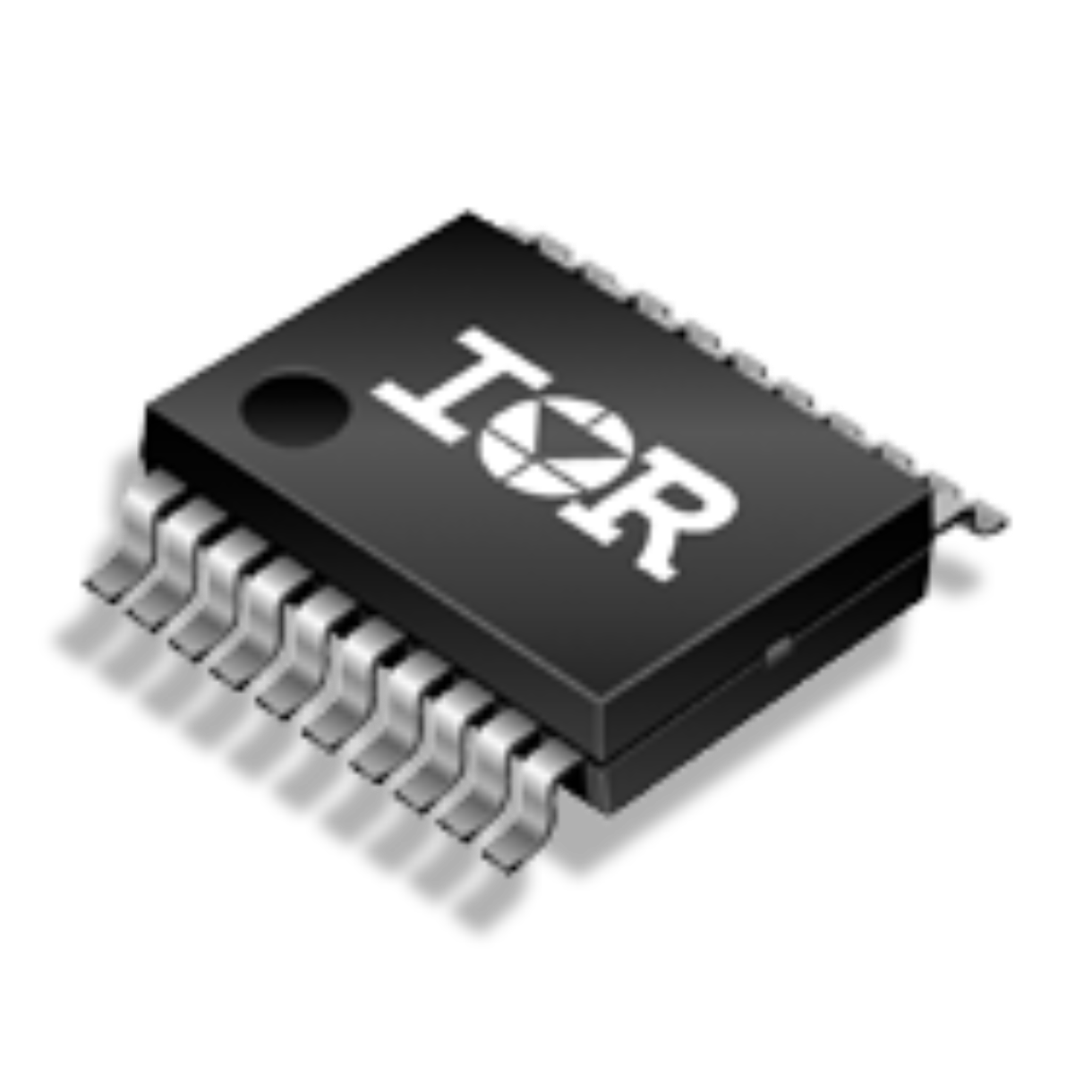

Image is for your reference only,please check specifications for details
- IRS2334SPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC40576030
-
Category:FET Driver
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:Драйвер MOSFET, 600 В, 0,35 А, 6 выходов, верхний/нижний уровень, полумост, неинвертирующий, 20 выводов, корпус SOIC W, трубка/навалом
-
Stock Locations:
-
Availability:223 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.72
Updated at 04/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сводка характеристик:
- Плавающий канал, предназначенный для работы с бутстрепной схемой
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям, нечувствителен к dV/dt
- Диапазон напряжения питания драйвера затвора от 10 В до 20 В
- Встроенная защита от сквозных токов (dead-time)
- Логика предотвращения сквозных токов (cross-conduction)
- Блокировка при пониженном напряжении питания для обоих каналов
- Независимые 3 драйвера полумоста
- Совместимость с логикой 3,3 В
- Усовершенствованный входной фильтр
- Согласованная задержка распространения для обоих каналов
- Драйвер затвора с пониженной скоростью нарастания тока (di/dt) для лучшей помехоустойчивости
- Выходы синфазны с входами
IRS2334SPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Rise/Fall Time | 125ns, 50ns |
| Number of Outputs | 6 Output |
| Number of Positions | 20 Position |
| Power Dissipation | 1140 mW |
| Fall Time (Max) | 75 ns |
| Fall Time (Max) | 190 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1140 mW |
| Supply Voltage | 10V ~ 20V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 12.98 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.64 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
