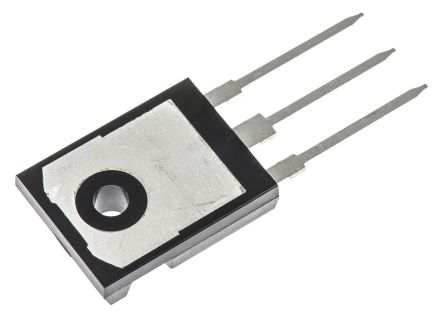

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FCH104N60F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.098 Ω
Power Dissipation	357 W
Threshold Voltage	5 V
Input Capacitance	4475 pF
Drain to Source Voltage (Vds)	600 V
Rise Time	24 ns
Input Capacitance (Ciss)	4475pF @100V(Vds)
Input Power (Max)	357 W
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	357 W
	Show
Size-Length	15.87 mm
Size-Width	4.82 mm
Size-Height	20.82 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
