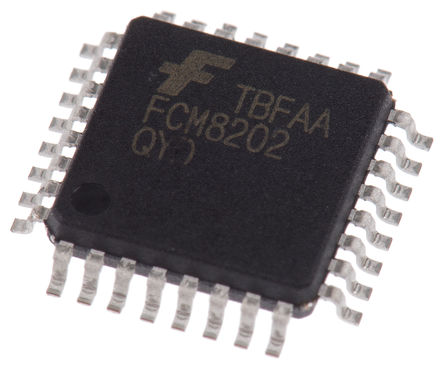

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FCM8202QY is a 3-phase sinusoidal Brushless DC Motor Controller (BLDC)/Permanent Magnet Synchronous Motor (PMSM) Controller. It comes with the advanced hall sensor design. Using the hall sensor signals, the control system is able to execute the PWM commutation by switching the three-phase inverter. There are two PWM modes of sine-wave mode and the square-wave mode. The square-wave mode includes PWM-PWM and PWM-ON approaches to improve the efficiency of the motor drive. Complete protection functions including overvoltage, over-current, over-temperature and short circuit prevent the control circuits and the motor from being damaged, particularly under stressed applications and demanding environments.
Supports space vector modulation (SVM)
Supports sine-wave and square-wave solutions
Built-in clock generator
Built-in error amplifier for torque loop control
Direct duty control
PLL angle detection (hall sensors)
Current leading phase correction
Synchronous rectifying
Three levels of over-current protection (OCP)
Adjustable OC timer
Over-temperature protection (OTP)
ESD sensitive device, take proper precaution while handling the device.

Show

FCM8202QY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LQFP-32
Supply Voltage (DC)	10.0V (min)
Number of Outputs	1 Output
Supply Current	5 mA
Number of Positions	32 Position
Switching Frequency	1.28 MHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10V ~ 17.5V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	10 V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
