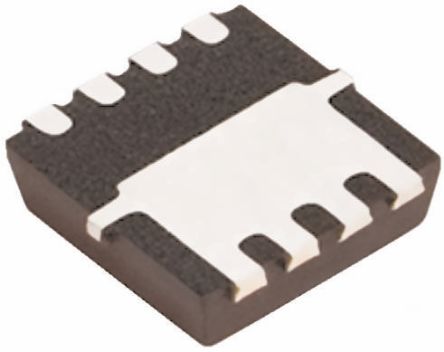

Image is for your reference only,please check specifications for details

FDMC8462 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC16241148
Category:
MOSFET, MOSFET Transistor
Package:
Power-33
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDMC8462 MOSFET Transistor, N Channel, 20A, 40V, 0.0047Ω, 10V, 2V
Stock Locations:
Availability:
3,097 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.02

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDMC8462 is a N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance and yet maintain superior switching performance.
100% UIL test
Low-profile

Show

FDMC8462 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-33
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0047 Ω
Polarity	N-Channel
Power Dissipation	41 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	14A
Rise Time	4 ns
Input Capacitance (Ciss)	2660pF @20V(Vds)
Input Power (Max)	2 W
Fall Time	3 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	41 W
	Show
Size-Length	3.3 mm
Size-Width	3.3 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
