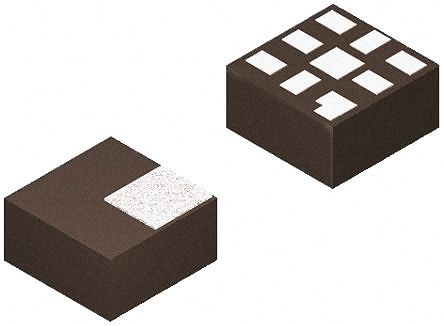

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Mosfet Array 2 N-Channel (Dual) 60V 8.2A (Ta) 1.9W (Ta), 16W (Tc) Surface Mount 8-Power33 (3x3)

Show

FDMC89521L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerWDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.013 Ω
Power Dissipation	16 W
Threshold Voltage	1.9 V
Drain to Source Voltage (Vds)	60 V
Input Capacitance (Ciss)	1635pF @30V(Vds)
Input Power (Max)	800 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.9 W
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
