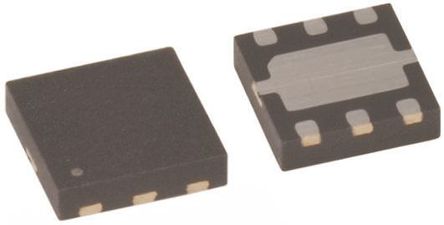

Image is for your reference only,please check specifications for details

FDME1024NZT - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC24918686
Category:
MOSFET, MOSFET Transistor
Package:
MicroFET-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDME1024NZT Dual MOSFET, Dual N Channel, 3.8A, 20V, 0.055Ω, 4.5V, 700mV
Stock Locations:
Availability:
9,805 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDME1024NZT is a dual N-channel PowerTrench® MOSFET designed specifically as a single package solution for dual switching requirement in cellular handset and other ultra-portable applications. It has two independent N-channel MOSFETs with low ON-state resistance for minimum conduction losses. The MicroFET thin package offers exceptional thermal performance for its physical size and is well suited to switching and linear mode applications.
Low profile
Halogen-free
±8V Gate to source voltage
3.8A Continuous drain current
6A Pulsed drain current

Show

FDME1024NZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	MicroFET-6
Number of Channels	2 Channel
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.055 Ω
Polarity	Dual N-Channel
Power Dissipation	1.4 W
Threshold Voltage	700 mV
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Continuous Drain Current (Ids)	3.8A
Rise Time	2 ns
Input Capacitance (Ciss)	225pF @10V(Vds)
Input Power (Max)	600 mW
Fall Time	1.7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1400 mW
	Show
Size-Length	1.6 mm
Size-Width	1.6 mm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
