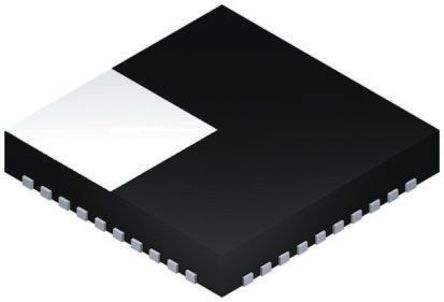

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FDMF6708N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	PQFN-40
Supply Voltage (DC)	3.00V (min)
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	50 A
Supply Current	2 mA
Number of Positions	40 Position
Rise Time	20 ns
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	24 V
Output Voltage (Min)	3 V
Output Current (Max)	50 A
Fall Time	10 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	24 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
