L717HDE15P - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC5764240
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Package:
throughHole
Datasheet:
Datasheet 3D Model
Description:

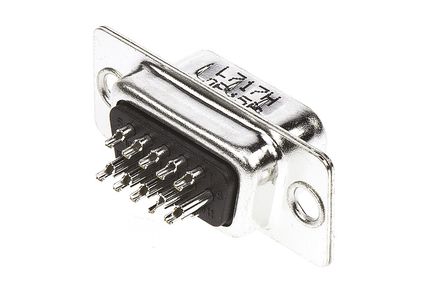

Conn High Density D-Sub PIN 15POS 2.29mm Solder Cup ST Panel Mount 15 Terminal 1Port
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Amphenol"s high density D-Sub connectors complement Amphenol"s extensive D-Sub connector line. The decreased contact spacing accommodates greater signal density in comparison to conventional D-Sub connectors.
Industrial, Telecom, Any industry standard I/O connections
Shells: Steel with Nickel plating
Insulator: Glass filled thermoplastic, UL 94V-0
Contacts: Copper alloy, selective Gold plating
Current Rating: 5A
Voltage Rating: 600V AC/rms 50Hz
Withstanding Voltage: 1000V AC/rms 50HZ for one minute
Insulation Resistance: 5000MR
Contact Resistance: 10mR Max.
Operating Temperature Range: -55°C to +125°C

Show

L717HDE15P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	15 Pin
Case/Package	throughHole
Number of Contacts	15 Contact
Gender	Male
Contact Plating	Gold
Current Rating	3 A
Insulation Resistance	1000 MΩ
Number of Rows	3 Row
Number of Positions	15 Position
Current Rating (Max)	3 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	250 V
Operating Voltage (Max)	250 VAC
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	30.89 mm
Size-Width	12.55 mm
Size-Height	12.55 mm
Contact Material	Brass
Operating Temperature	-55℃ ~ 105℃
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
