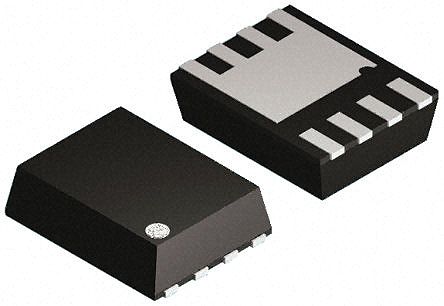

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 30V 16A (Ta), 22A (Tc) 2.5W (Ta), 33W (Tc) Surface Mount 8-PQFN (5x6)
FDMS7682 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | QFN-56 |
| Power Dissipation | 2.5 W |
| Drain to Source Voltage (Vds) | 30 V |
| Rise Time | 2.7 ns |
| Input Capacitance (Ciss) | 1416pF @15V(Vds) |
| Input Power (Max) | 2.5 W |
| Fall Time | 2.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 33 W |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 6 mm |
| Size-Height | 1.05 mm |
| Material | Silicon |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
