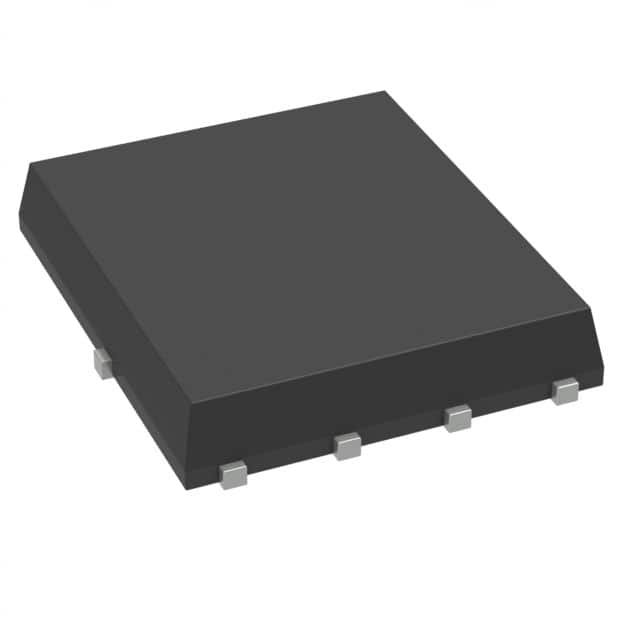

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 150V 4.6A (Ta), 16A (Tc) 2.5W (Ta), 69W (Tc) Surface Mount 8-PQFN (5x6)

Show

FDMS86252 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	8 Pin
Case/Package	PowerTDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0439 Ω
Power Dissipation	69 W
Threshold Voltage	2.8 V
Drain to Source Voltage (Vds)	150 V
Rise Time	2.3 ns
Input Capacitance (Ciss)	678pF @75V(Vds)
Input Power (Max)	2.5 W
Fall Time	3.2 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2500 mW
	Show
Material	Silicon
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
