Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

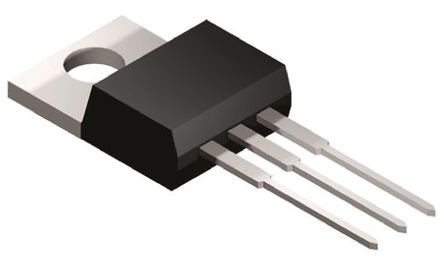

Case/Package | TO-220-3 |
Voltage Rating (DC) | 30.0 V |
Current Rating | 40.0 A |
Drain to Source Resistance (on) (Rds) | 15.0 mΩ |
Polarity | N-Channel |
Power Dissipation | 60 W |
Input Capacitance | 1.16 nF |
Gate Charge | 12.0 nC |
Drain to Source Voltage (Vds) | 30 V |
Breakdown Voltage (Drain to Source) | 30.0 V |
Breakdown Voltage (Gate to Source) | ±20.0 V |
Continuous Drain Current (Ids) | 40.0 A |
Rise Time | 11 ns |
Input Capacitance (Ciss) | 1160pF @15V(Vds) |
Input Power (Max) | 60 W |
Fall Time | 8 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -65 ℃ |
Power Dissipation (Max) | 60W (Tc) |
Show | |
Size-Length | 10.67 mm |
Size-Width | 4.83 mm |
Size-Height | 9.4 mm |
Operating Temperature | -65℃ ~ 175℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
ECCN Code | EAR99 |
