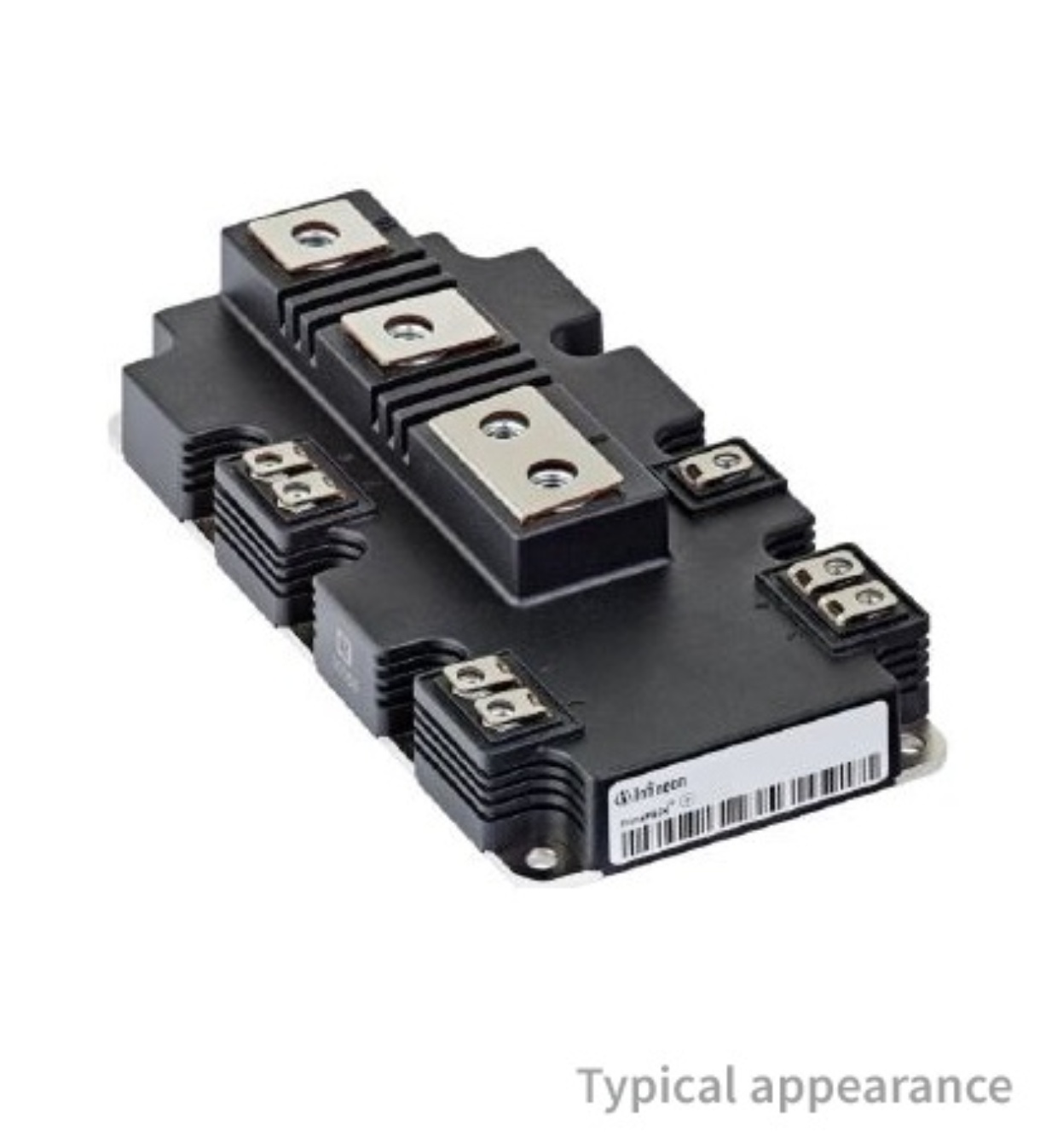

Image is for your reference only,please check specifications for details
- FF600R12IE4 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC120315155
-
Category:IGBT Transistor, IGBT Module
-
Package:PRIME-2
-
Datasheet:Datasheet 3D Model
-
Description:INFINEON FF600R12IE4 IGBT Array & Module Transistor, PrimePACK™2, N Channel, 600A, 1.75V, 3.35kW, 1.2kV, Module
-
Stock Locations:
-
Availability:225 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 873.36
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Extended Operation Temperature T(tvj op)
- High DC Stability
- High Short Circuit Capability, Self Limiting Short Circuit Current
- Low Switching Losses
- Unbeatable Robustness
- V(cesat) with positive Temperature Coefficient
- 4kV AC 1min Insulation
- Package with CTI > 400
- High Creepage and Clearance Distances
- High Power and Thermal Cycling Capability
- Substrate for Low Thermal Resistance
- UL recognized
- Benefits:
- High Power Density
- Standardized housing
FF600R12IE4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 10 Pin |
| Case/Package | PRIME-2 |
| Polarity | N-Channel |
| Power Dissipation | 3.35 kW |
| Breakdown Voltage (Collector to Emitter) | 1200 V |
| Input Capacitance (Cies) | 37nF @25V |
| Input Power (Max) | 3350 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Show | |
| Size-Length | 172 mm |
| Size-Width | 89 mm |
| Size-Height | 38 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
