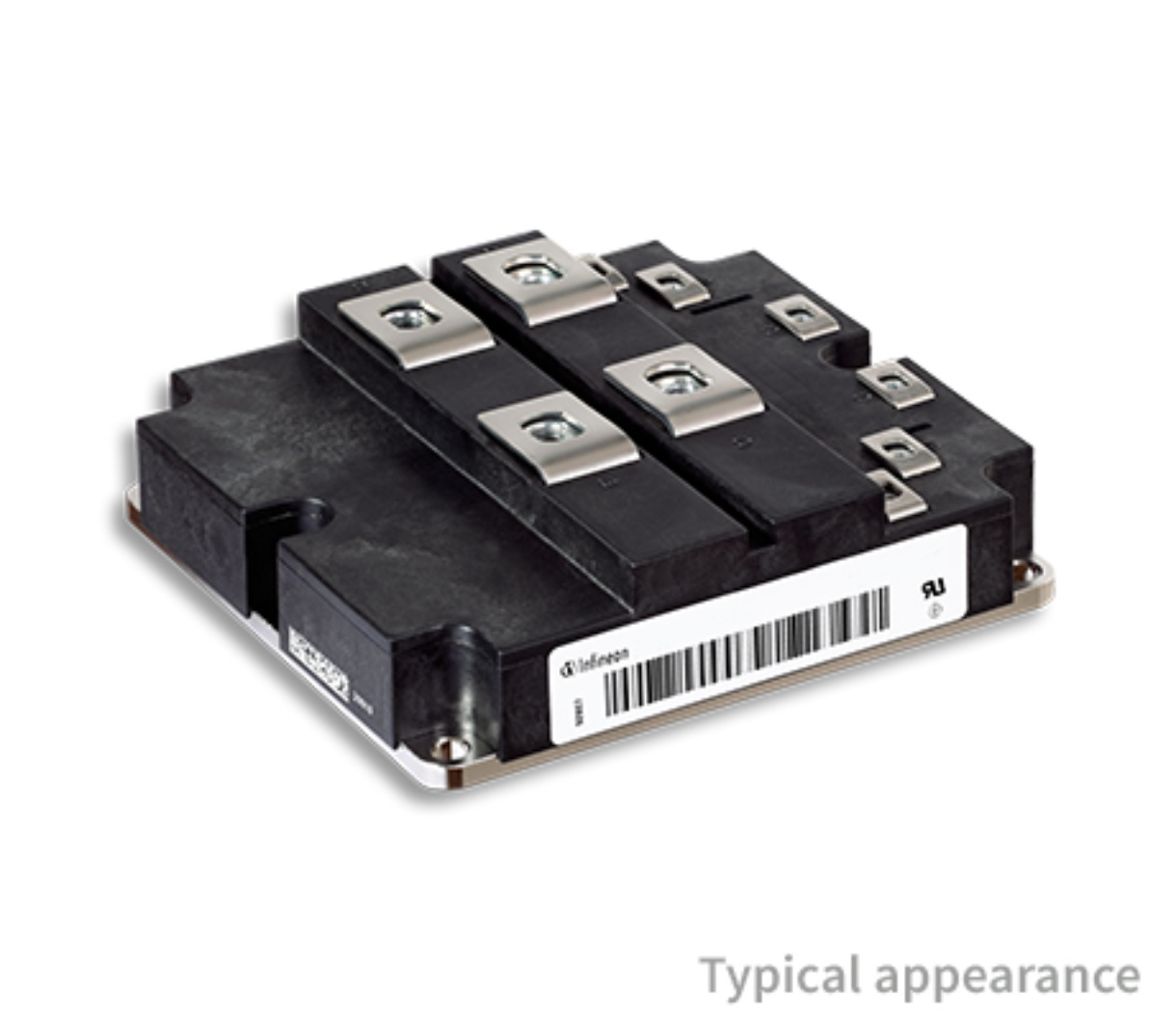

Image is for your reference only,please check specifications for details
- FF800R12KE3 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC157977700
-
Category:IGBT Transistor, IGBT Module
-
Package:A-IHM130-2
-
Datasheet:Datasheet 3D Model
-
Description:Транзисторный IGBT-модуль N-канальный, 1,2 кВ, 1200 А, 10 выводов, IHM130-2
-
Stock Locations:
-
Availability:245 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1926.47
Updated at 02/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Высокая надёжность и прочная конструкция модуля * Сертифицировано по стандарту UL
FF800R12KE3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | A-IHM130-2 |
| Power Rating | 3900 W |
| Power Dissipation | 3.9 kW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3900 mW |
| Show | |
| Size-Length | 140 mm |
| Size-Width | 130 mm |
| Size-Height | 38 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
