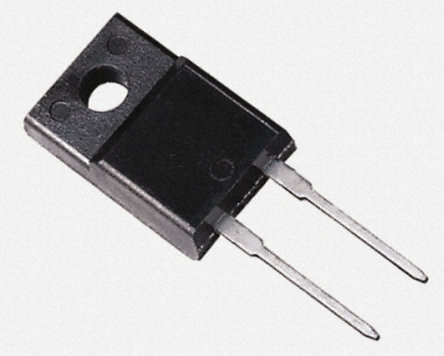

Image is for your reference only,please check specifications for details

FFPF10UP20STU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC72006733
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FFPF10UP20STU Fast / Ultrafast Diode, 200V, 10A, Single, 1.15V, 35ns, 100A
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FFPF10UP20STU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	200 V
Current Rating	10.0 A
Output Current	≤10.0 A
Forward Voltage	1.15V @10A
Polarity	Standard
Thermal Resistance	4.3℃/W (RθJC)
Reverse recovery time	35 ns
Forward Current	10 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.15 V
Forward Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	9.19 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
