FGB20N60SF - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC77806184
Category:
IGBT Transistor, IGBT Module
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:

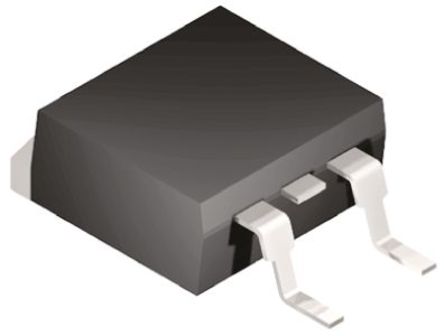

FAIRCHILD SEMICONDUCTOR FGB20N60SF IGBT Single Transistor, General Purpose, 20A, 600V, 208W, 600V, TO-263, 3Pins
Stock Locations:
Availability:
777 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FGB20N60SF is a high speed novel Field Stop IGBT offers the optimum performance for solar inverter, UPS, welder and PFC applications where low conduction and switching losses are essential.
High current capability
High input impedance
2.2V @ IC = 20A Low saturation voltage
8µJ/A Fast switching

Show

FGB20N60SF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Power Dissipation	208 W
Breakdown Voltage (Collector to Emitter)	600 V
Input Power (Max)	208 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	208 W
	Show
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
