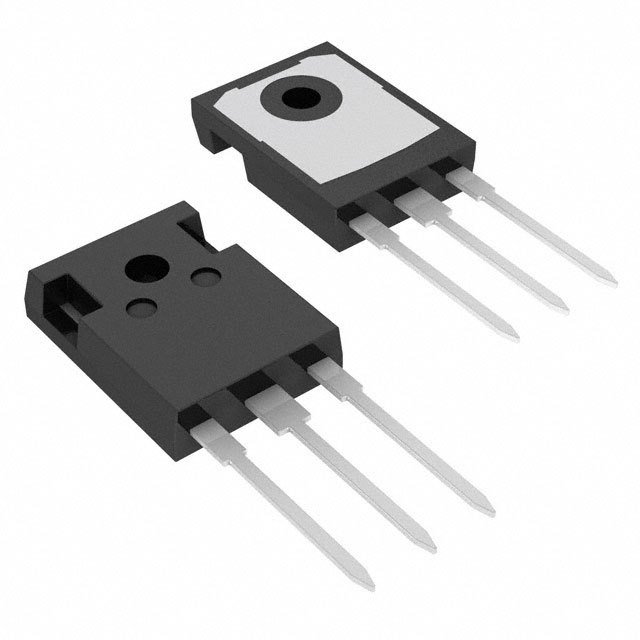

FGH50N6S2D - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC81753796
Category:
IGBT Transistor, IGBT Module
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FGH50N6S2D IGBT Single Transistor, 75A, 2.7V, 463W, 600V, TO-247, 3Pins
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FGH50N6S2D is a 600V N-channel IGBT with anti-parallel stealth diode. The SMPS II series is a combination of the fast switching speed of the SMPS IGBTs along with lower gate charge, plateau voltage and avalanche capability (UIS). This LGC device shortens delay times and reduce the power requirement of the gate drive. This device is ideally suited for high voltage switched mode power supply applications where low conduction loss, fast switching times and UIS capability are essential. SMPS II LGC devices have been specially designed for power factor correction (PFC) circuits, full bridge topologies, half bridge topologies, push-pull circuits, uninterruptible power supplies and zero voltage and zero current switching circuits. This product is general usage and suitable for many different applications.
100kHz Operation at 390V, 40A
200kHZ Operation at 390V, 25A
600V Switching SOA capability
90ns Fall time
UIS Rated
ESD sensitive device, take proper precaution while handling the device.

Show

FGH50N6S2D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	75.0 A
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	463 W
Rise Time	15 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	55 ns
Input Power (Max)	463 W
Fall Time	50 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	463000 mW
	Show
Size-Height	20.82 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
