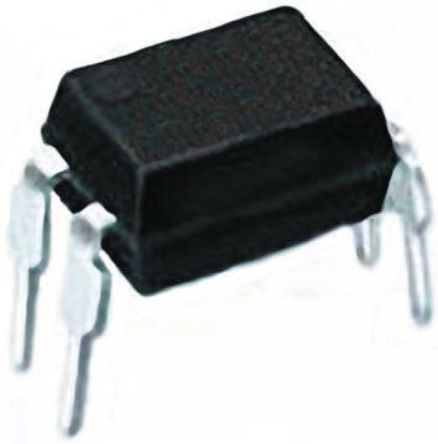

FOD814A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC16328444
Category:
Optocoupler, Optoisolator
Package:
DIP-4
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FOD814A Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 50mA, 5kV, 50%
Stock Locations:
Availability:
2,984 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FOD814A is a 1-channel 4-pin Phototransistor Optocoupler consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output. It is suitable for AC line monitor, unknown polarity DC sensor and telephone line interface.
AC input response
Minimum BVCEO of 70V guaranteed
850V Maximum working insulation voltage
8000V High allowable overvoltage
70V BVCEO Minimum Guaranteed

Show

FOD814A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Rise/Fall Time	4µs, 3µs
Input Voltage (DC)	7.00V (max)
Output Voltage	70.0 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Input Current	50 mA
Power Dissipation	200 mW
Rise Time	4 µs
Isolation Voltage	5000 Vrms
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	50 mA
Output Voltage (Max)	70 V
Input Current (Min)	50 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	3 µs
Fall Time (Max)	18 µs
Fall Time (Max)	18 µs
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	5.1 mm
Size-Width	7 mm
Size-Height	4 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
