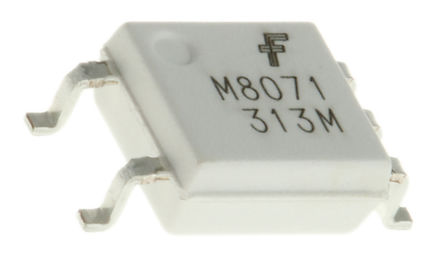

FODM8071 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC14015284
Category:
Optocoupler, Optoisolator
Package:
5-Mini-Flat
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FODM8071 Optocoupler, Digital Output, 1Channel, 3.75kV, 20Mbps, SOP, 5Pins
Stock Locations:
Availability:
1,883 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.72

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FODM8071 is a 3.3V/5V 20Mbps high-speed Logic Gate Output Optocoupler, which supports isolated communications allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages. It utilizes Fairchild"s proprietary coplanar packaging technology, Optoplanar® and optimized IC design to achieve high noise immunity, characterized by high common mode rejection specifications. This high-speed logic gate output optocoupler consists of a high-speed AlGaAs LED at the input coupled to a CMOS detector IC at the output. The detector IC comprises an integrated photodiode, a high-speed transimpedance amplifier and a voltage comparator with an output driver. The CMOS technology coupled with a high efficiency LED achieves low power consumption as well as very high-speed (60ns propagation delay, 20ns pulse width distortion).
High noise immunity characterized by common mode transient immunity (CMTi)
20kV/µs Minimum CMTi
55ns Maximum date rate (NRZ)
20ns Maximum propagation delay
30ns Maximum pulse width distortion
Propagation delay skew
3.3V LVTTL/LVCMOS compatibility

Show

FODM8071 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	5-Mini-Flat
Rise/Fall Time	5.8ns, 5.3ns
Output Voltage	5.00 V
Output Current	0.01 A
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.35 V
Input Current	16 mA
Power Dissipation	40 mW
Data Rate	20.0 Mbps
Rise Time	5.8 ns
Isolation Voltage	3750 Vrms
Forward Current	20 mA
Input Current (Min)	20 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	20 mA
Fall Time	5.3 ns
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	70 mW
Supply Voltage	3V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
