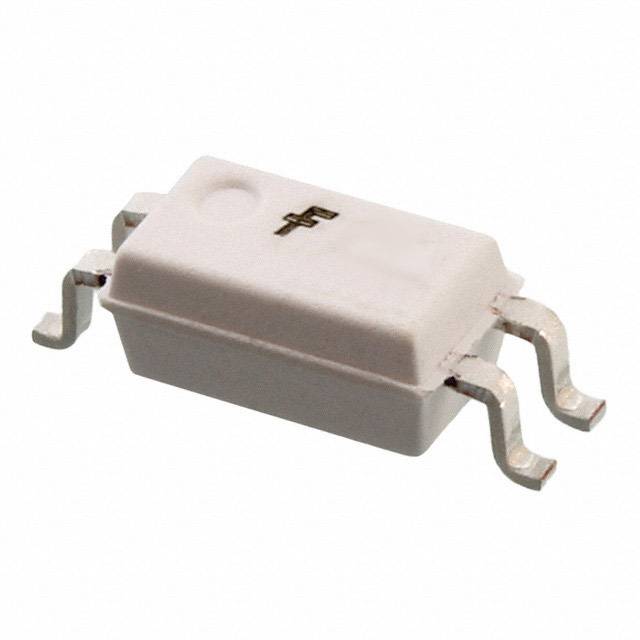

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OptoHiT™ FODM8801 is a first-of-its-kind phototransistor, utilizing Fairchild’s leading-edge, proprietary process technology to achieve high operating temperature characteristics, up to 125°C. The optocoupler consists of an aluminum gallium arsenide (AlGaAs) infrared light emitting diode (LED) optically coupled to a phototransistor, in a compact half pitch, mini-flat, 4-pin package. It delivers high current transfer ratio at very low input current. The input-output isolation voltage, V
- Features
- ---
- |
- Utilizing proprietary process technology to achieve high operating temperature up to 125°C
- Guaranteed Current Transfer Ratio (CTR) specifications across full temperature range
- Excellent CTR linearity at high temperature
- CTR at very low input current, IF
- High isolation voltage regulated by safety agency, UL1577, 3750 VAC RMS for 1 min. and DIN EN/IEC60747-5-2 (pending approval)
- Compact half pitch, mini-flat, 4-pin package (1.27mm lead pitch, 2.4mm maximum standoff height)
- > 5mm creepage and clearance distance
- Applicable to Infrared Ray reflow, 245°C
FODM8801A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 4-Mini-Flat |
| Rise/Fall Time | 5µs, 5.5µs |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.35 V |
| Input Current | 20 mA |
| Power Dissipation | 150 mW |
| Rise Time | 5 µs |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 20 mA |
| Output Voltage (Max) | 75 V |
| Maximum Forward Voltage (Max) | 1.8 V |
| Forward Current (Max) | 20 mA |
| Fall Time | 5.5 µs |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 150 mW |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
