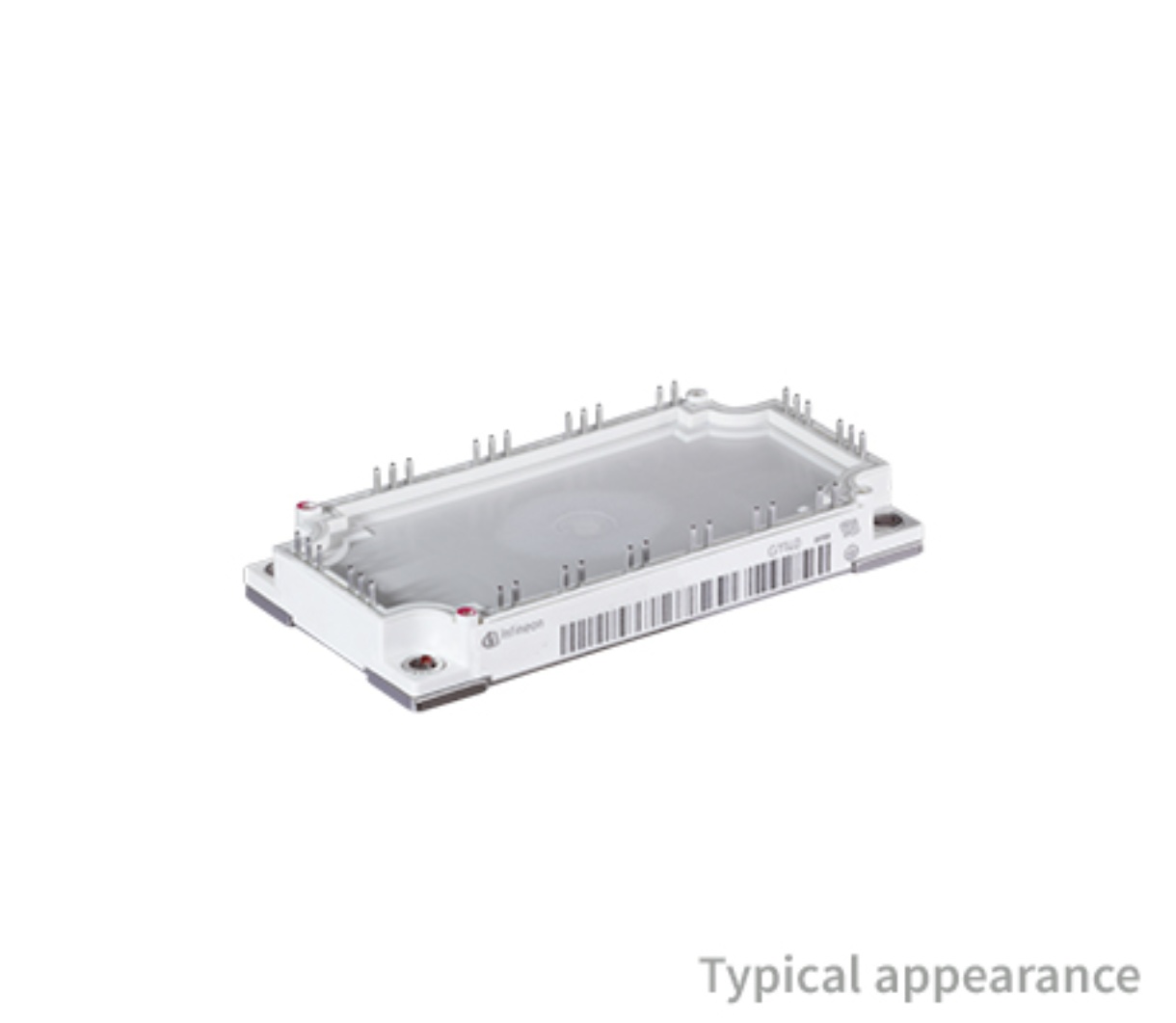

Image is for your reference only,please check specifications for details
- FP50R12KT4G - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC43599378
-
Category:IGBT Transistor, IGBT Module
-
Package:AG-ECONO3-3
-
Datasheet:Datasheet 3D Model
-
Description:INFINEON FP50R12KT4G IGBT Array & Module Transistor, NPN, 50A, 1.85V, 280W, 1.2kV, Module
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 52.32
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low Switching Losses
- Low V(CEsat)
- T(vj op) = 150°C
- V(CEsat) with positive Temperature Coefficient
- Al(2)O(3) Substrate with Low Thermal Resistance
- High Power and Thermal Cycling Capability
- Integrated NTC temperature sensor
- Copper Base Plate
- Solder Contact Technology
- Standard Housing
- Benefits:
- Compact module concept
- Optimized customer’s development cycle time and cost
- Configuration flexibility
FP50R12KT4G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 35 Pin |
| Case/Package | AG-ECONO3-3 |
| Power Rating | 280 W |
| Number of Positions | 35 Position |
| Polarity | NPN |
| Power Dissipation | 280 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
