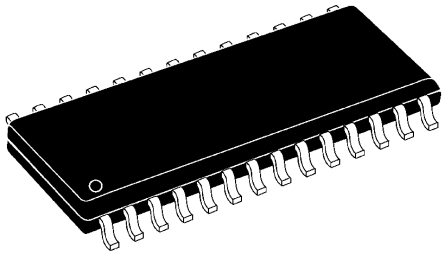

Image is for your reference only,please check specifications for details

UC3625DW - TI
Manufacturer:
TI
ManyChip's Part#:
MC5198600
Category:
Motor Driver
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UC3625DW Motor Driver/Controller, DC Brushless, 10V to 18V supply, 50V/200mA/6Outputs, SOIC-28
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3625DW is a brushless DC Motor Controller integrates most of the functions required for high-performance brushless DC-motor control. When coupled with external power MOSFETs or Darlingtons, this device perform fixed-frequency PWM motor control in either voltage or current mode while implementing closed-loop speed control and braking with smart noise rejection, safe direction reversal and cross-conduction protection. Although specified for operation from power supplies between 10 and 18V. It contains fast, high-current push-pull drivers for low-side power devices and 50V open-collector outputs for high-side power devices or level-shifting circuitry.
Drives power MOSFETs or power Darlingtons directly
Latched soft-start
High-speed current-sense amplifier with ideal diode
Pulse-by-pulse and average current sensing
Over-voltage and under-voltage protection
Direction latch for safe direction reversal
Tachometer
Programmable cross-conduction protection
30mA Trimmed reference sources
Green product and no Sb/Br

Show

UC3625DW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Supply Voltage (DC)	10.0V (min)
Number of Outputs	6 Output
Output Voltage	50 V
Output Current	200 mA
Number of Positions	28 Position
Output Current (Max)	500 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	10 V
	Show
Size-Length	18 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
