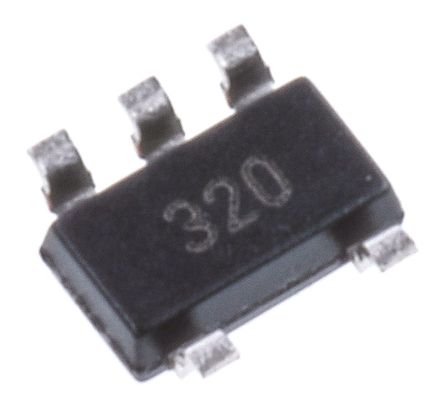

Image is for your reference only,please check specifications for details

MIC2287CYD5 TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC131287711
Category:
LED Driver, LED Display Driver
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
MIC2287 Series 20mA 10V 1.2MHz Surface Mount PWM White LED Driver - SOT-23-5
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.8

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC2287CYD5 TR is a 1.2MHz PWM white LED Driver optimized for constant-current, white LED driver applications with a maximum output voltage of 34V and a switch current of over 500mA, this easily drives a string of up to eight white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors. The driver implements a constant frequency, 1.2MHz PWM control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM scheme as opposed to variable frequency topologies is much lower noise and input ripple injected back to the battery source. To optimize efficiency, the feedback voltage is set to only 95mV. This reduces the power dissipation in the current set resistor and allows the lowest total output voltage, hence minimal current draw from the battery.
Over-temperature protection
95mV Feedback voltage

Show

MIC2287CYD5 TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Frequency	1.05MHz ~ 1.35MHz
Supply Voltage (DC)	10.0V (max)
Number of Outputs	1 Output
Output Voltage	34 V
Output Current	500 mA
Number of Positions	5 Position
Switching Frequency	1.2 MHz
Topology	Boost
Input Voltage (Max)	10 V
Input Voltage (Min)	2.5 V
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5V ~ 10V
Input Voltage	2.5V ~ 10V
	Show
Operating Temperature	-40℃ ~ 105℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
