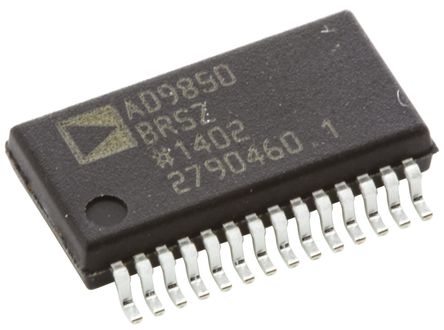

Image is for your reference only,please check specifications for details

AD9850BRSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC232348
Category:
Logic Controller, Logic IC
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9850BRSZ Special Function IC, Direct Digital Synthesizer, 125MHz, 10Bit DAC, 4.75V to 5.25V, SSOP-28
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9850BRSZ is a highly Integrated Device, uses advanced DDS technology coupled with an internal high speed, high performance, D/A converter and comparator, to form a complete digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, it generates a spectrally pure, frequency/phase-programmable, analogue output sine wave. This sine wave can be used directly as a frequency source or converted to a square wave for agile-clock generator applications. Its innovative high speed DDS core provides a 32-bit frequency tuning word, which results in an output tuning resolution of 0.0291Hz, for a 125MHz reference clock input. The AD9850BRSZ circuit architecture allows the generation of output frequencies of up to one-half the reference clock frequency (or 62.5MHz) and the output frequency can be digitally changed (asynchronously) at a rate of up to 23 million new frequencies per second.
125MHz Clock Rate
On-chip High Performance DAC and High Speed Comparator
DAC SFDR >50 dB at 40MHz AOUT
32-bit Frequency Tuning Word
Parallel Byte or Serial Loading Format Simplified Control Interface
Phase Modulation Capability
3.3 or 5V Single-supply Operation
380mW at 125MHz (5V) and 155mW at 100MHz (3.3V) Low Power
Power-down Function
ESD sensitive device, take proper precaution while handling the device, users are cautioned not to apply digital input signals prior to power-up of this device.

Show

AD9850BRSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Frequency	125 MHz
Supply Voltage (DC)	3.30 V, 3.30 V (min)
Current Rating	30.0 A
Number of Outputs	1 Output
Output Current	20.48 mA
Supply Current	96.0 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	10 Bit
Power Dissipation	480 mW
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	480 mW
Number of DACs	1 DAC
Supply Voltage	3.3V, 5V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
