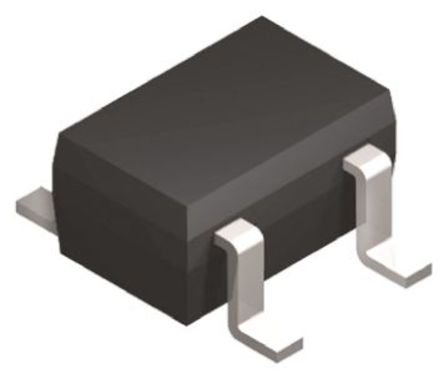

Image is for your reference only,please check specifications for details
- FPF2006 - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC79743472
-
Category:Power Management IC
-
Package:SC-70-5
-
Datasheet:Datasheet 3D Model
-
Description:Current Limit SW 1IN 1Out 1.8V to 5.5V 0.2A 5Pin SC-70 T/R
-
Stock Locations:
-
Availability:10,023 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.6
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Your system is safe with this FPF2006 load switch from Fairchild Semiconductor, protecting you from any abnormal current spikes or short circuiting. This current limited load switch"s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 5.5 V. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This current limited load switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
FPF2006 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Supply Voltage (DC) | 5.00 V |
| Current Rating | 100 mA |
| Power Rating | 250 mW |
| Number of Outputs | 1 Output |
| Output Voltage | 6 V |
| Output Current | 100 mA |
| Power Dissipation | 250 mW |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.8 V |
| Output Current (Max) | 100 mA |
| Output Current (Min) | 0.1 A |
| Number of Inputs | 1 Input |
| Fall Time | 0.1 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Input Voltage | 1.8V ~ 5.5V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 1 mm |
| Weight | 10.4326252 kg |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
