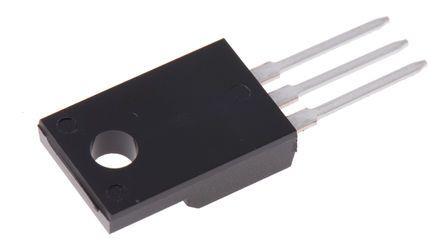

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 200V 5.2A (Tc) 45W (Tc) Through Hole TO-220F
FQPF7P20 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Drain to Source Voltage (Vds) | 200 V |
| Input Capacitance (Ciss) | 770pF @25V(Vds) |
| Input Power (Max) | 45 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 45 W |
| Show | |
| Size-Length | 10.36 mm |
| Size-Width | 4.9 mm |
| Size-Height | 16.07 mm |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
