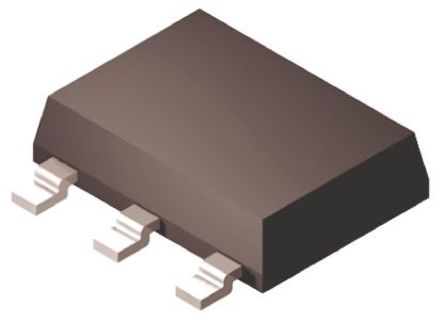

Image is for your reference only,please check specifications for details

FQT1N60CTF_WS - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC21762273
Category:
MOSFET, MOSFET Transistor
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FQT1N60CTF_WS Power MOSFET, N Channel, 200mA, 600V, 9.3Ω, 10V, 4V
Stock Locations:
Availability:
9,024 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FQT1N60CTF_WS is a N-channel QFET® enhancement-mode power MOSFET produced using Fairchild Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance and to provide superior switching performance and high avalanche energy strength. This device is suitable for switched mode power supplies, active power factor correction (PFC) and electronic lamp ballasts.
Low gate charge (4.8nC)
Low Crss (3.5pF)
100% avalanche tested

Show

FQT1N60CTF_WS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	9.3 Ω
Polarity	N-Channel
Power Dissipation	2.1 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	0.2A
Rise Time	21 ns
Input Capacitance (Ciss)	170pF @25V(Vds)
Input Power (Max)	2.1 W
Fall Time	27 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.1W (Tc)
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.7 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
